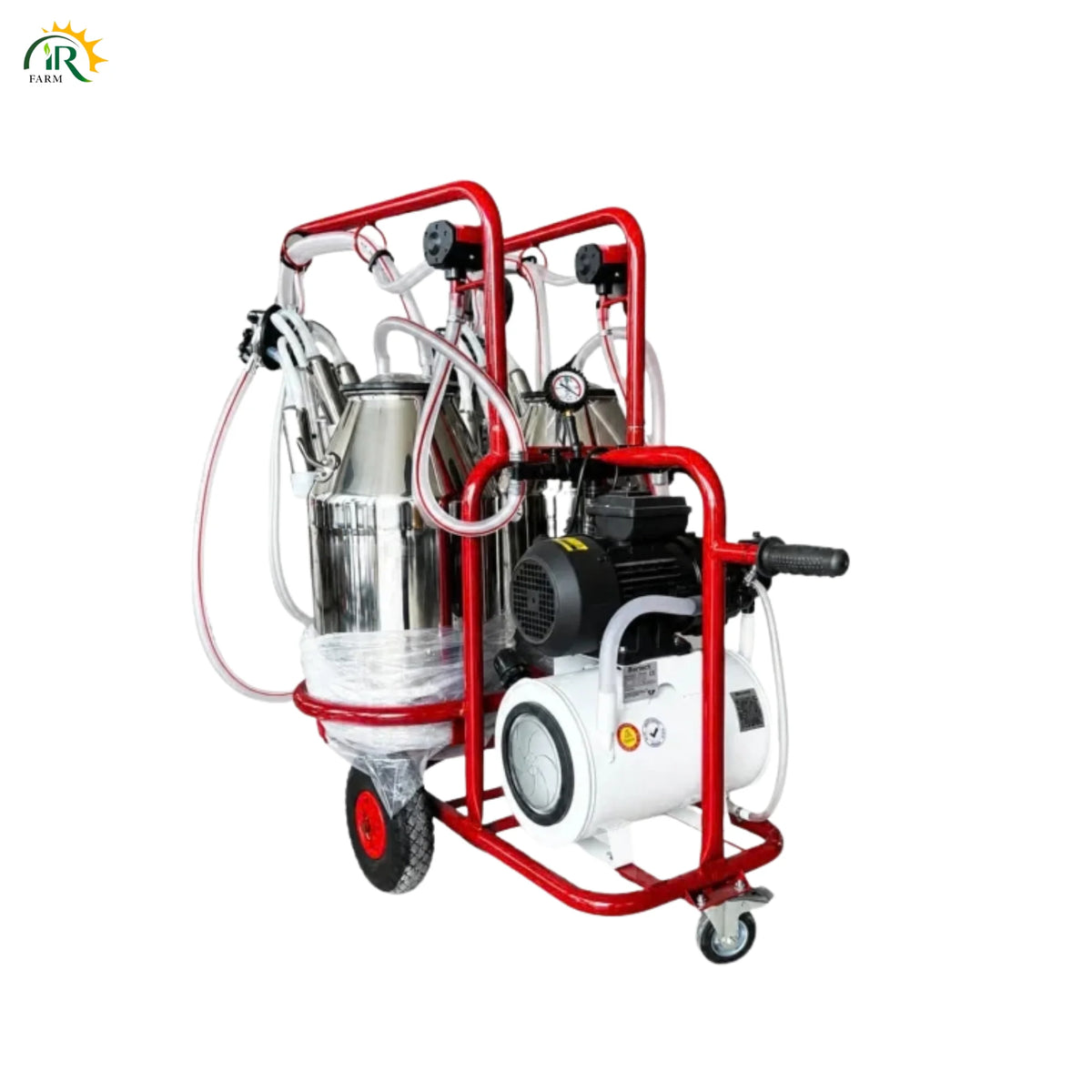

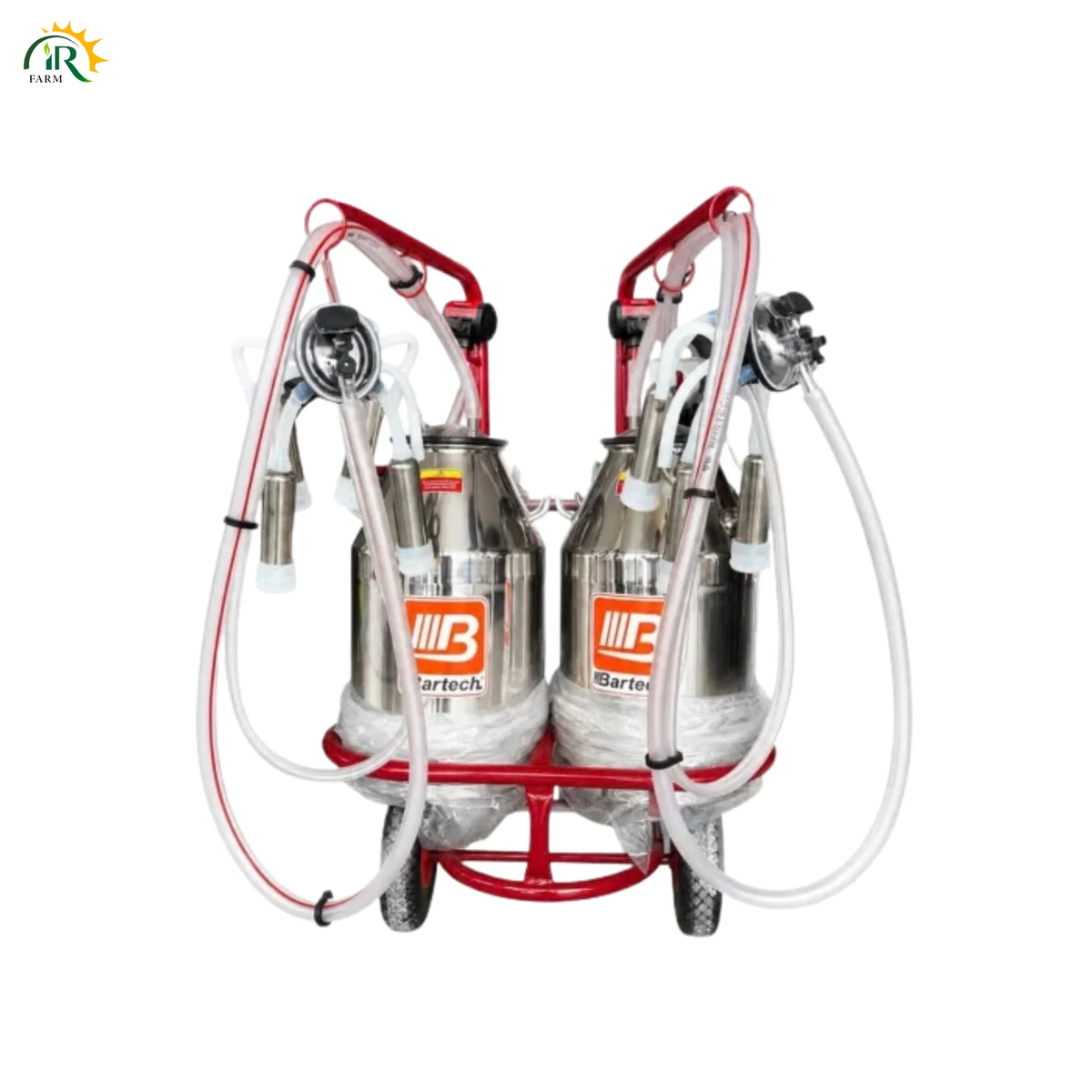

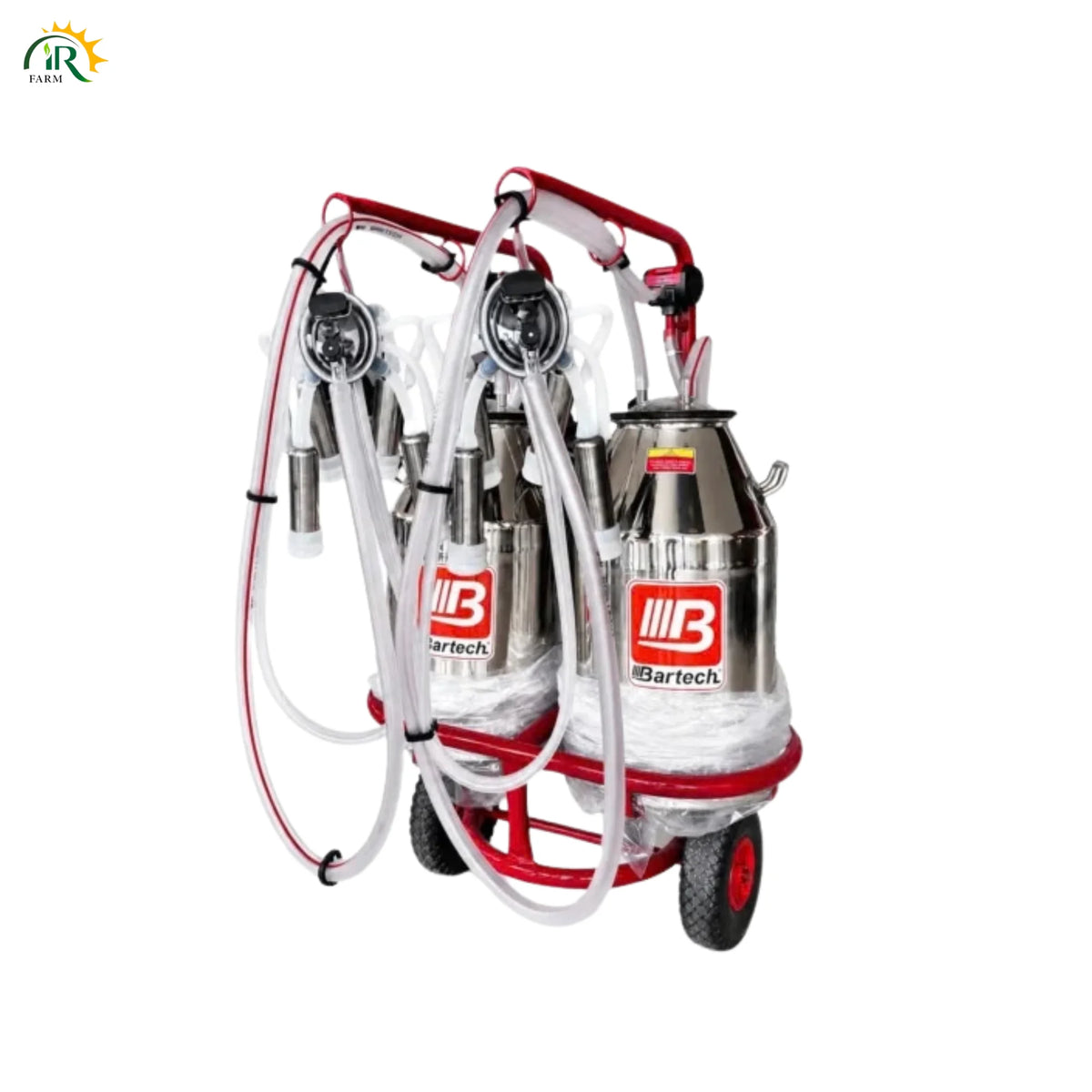

40L Milking Machine – Double Bucket Double Cluster Bartech

40L Milking Machine – Double Bucket Double Cluster

The 40L Milking Machine is a double-bucket, double-cluster dairy milking system designed for farms that need more milking capacity than a single-cluster setup. Its two-cluster configuration allows two milking points to operate at the same time, making it suitable for regular dairy work where several animals need to be milked in each session. The machine features 40-litre SS-304 food-grade jointless milk buckets, a 0.55 kW single-phase motor and a vacuum pump rated at 220 L/min. The reference specifications state a milking time of 4–7 minutes and a capacity of 10–15 animals per hour.

۴۰ لیٹر دودھ دوہنے کی مشین – ڈبل بالٹی، ڈبل کلسٹر

یہ ۴۰ لیٹر دودھ دوہنے کی مشین ڈبل بالٹی اور ڈبل کلسٹر نظام کے ساتھ ڈیری فارمز کے لیے تیار کی گئی ہے۔ دو کلسٹر ہونے کی وجہ سے ایک ہی وقت میں دو جانوروں کے دودھ دوہنے کے عمل کو منظم کیا جا سکتا ہے۔ اس میں خوراک کے لیے موزوں سٹین لیس سٹیل کی بغیر جوڑ والی دودھ جمع کرنے کی بالٹیاں، سنگل فیز برقی موٹر اور ویکیوم نظام موجود ہے۔ درج شدہ معلومات کے مطابق دودھ دوہنے کا وقت تقریباً ۴ سے ۷ منٹ اور مشین کی صلاحیت تقریباً ۱۰ سے ۱۵ جانور فی گھنٹہ ہے۔ درست استعمال اور مشین کے انتخاب کے لیے آئی آر فارم سے رہنمائی حاصل کریں۔

Product Overview

• Product Name: 40L Milking Machine
• Machine Type: Double Bucket, Double Cluster
• Milk Bucket Size: 40 Litres
• Pump Warrenty: 3 Years
• Parts Warrenty: 6 months
• Bucket Material: SS-304 Food Grade Stainless Steel
• Bucket Design: Jointless
• Motor: 0.55 kW Single Phase
• Motor Speed: 2400 RPM
• Power Supply: 220 V AC
• Vacuum Pump Capacity: 220 L/min at 50 kPa
• Working Pressure: 0.45 bar
• Stated Milking Time: 4–7 Minutes
• Stated Milking Capacity: 10–15 Animals per Hour
• Origin: Turkey

Key Benefits of 40L Double Bucket Milking Machine

• Double Milking Setup: Two buckets and two clusters provide two milking points for a more productive dairy routine.
• Suitable for Larger Milking Sessions: The double-cluster arrangement is useful for farms handling several dairy animals during each milking session.
• 40L Milk Collection: Large stainless-steel buckets provide practical capacity for regular farm milking.
• Food-Grade Stainless Steel: SS-304 milk buckets provide an appropriate food-contact surface for milk collection.
• Jointless Bucket Construction: The smooth jointless design makes the milk-contact surface easier to clean properly.
• Electric Vacuum Operation: The motor and vacuum pump provide the suction required for machine-assisted milking.
• Reduced Dependence on Hand Milking: A double-cluster machine can help organize routine milking where manual milking requires considerable time and labour.

Double Bucket & Double Cluster Milking System

• Two Milking Clusters: The double-cluster arrangement provides two separate milking points.
• Two Milk Buckets: Milk from each milking point is collected through the double-bucket setup.
• Simultaneous Milking: A properly configured double-cluster system can be used to milk two dairy animals at the same time.
• Better Workflow: Farmers with several animals can organize milking more efficiently than with a one-cluster machine.
• Suitable Dairy Application: This type of setup is commonly used for cows and buffaloes on small and medium dairy farms.

Milking Capacity & Farm Suitability

• Stated Capacity: The reference product specification lists approximately 10–15 animals per hour.
• Milking Time: The stated milking period is approximately 4–7 minutes.
• Farm Use: The double-bucket system is more suitable where farmers require two milking points instead of a single-cluster setup.
• Cow Milking: Double-cluster machines of this type are commonly used as milking machines for cows.
• Buffalo Milking: They may also be used for buffaloes when the cluster, liners and machine setup are suitable for the herd.

Main Parts of the 40L Milking Machine

• Double Milk Buckets: Stainless-steel containers used for collecting milk during operation.
• Double Milking Clusters: Two cluster assemblies provide the machine's two milking points.
• Vacuum Pump: The listed vacuum-pump capacity is 220 L/min at 50 kPa.
• Electric Motor: A 0.55 kW single-phase motor provides power to the system.
• Vacuum Connections: Vacuum lines connect the pump and milking system during operation.

For information about the exact accessories supplied with the machine or replacement milking machine parts, contact IR Farm before ordering.

How to Use the 40L Double Bucket Milking Machine

• Prepare Both Milking Points: Check that both buckets, clusters and vacuum connections are clean and correctly connected.
• Clean the Animals: Clean and dry the teats before attaching the milking clusters.
• Check the Vacuum System: Make sure connections are secure and there is no obvious air leakage before milking begins.
• Attach the Clusters: Fit each cluster carefully to the animal and monitor the milking process.
• Maintain Correct Vacuum: Operate the machine according to its recommended working pressure.
• Remove Clusters Correctly: Release the vacuum before removing the teat cups instead of pulling the cluster away under suction.
• Clean Immediately After Milking: Wash milk-contact components after every milking session so milk residue does not remain inside the system.

For first-time setup, operating guidance or help using both clusters correctly, contact IR Farm consultancy before operating the machine.

Cleaning & Maintenance

• Clean both milk buckets and all milk-contact components after every use.
• Rinse and wash the clusters, liners and milk pathways according to suitable dairy-equipment cleaning practices.
• Allow cleaned components to drain and dry properly before storage or the next milking session.
• Regularly inspect hoses and vacuum connections for cracks, looseness or air leakage.
• Check liners and other frequently used milking machine parts for wear and replace them when necessary.
• Keep water away from the motor, electrical connections and other electrical components during cleaning.
• Maintain the vacuum pump according to the instructions for the pump type supplied with the machine.

Pro Tips for Using a Double Bucket Milking Machine

• Prepare both animals before starting so the two-cluster system can be used efficiently.
• Keep each bucket and cluster set organized during operation to avoid crossed or twisted lines.
• Check vacuum connections before every session because leakage can reduce milking performance.
• Use a consistent milking routine so cows or buffaloes become familiar with machine milking.
• Do not wait until liners, hoses or seals fail completely; inspect frequently used parts as part of routine maintenance.
• Clean both milk pathways equally carefully even if one side was used for less time.

Safety & Precautions

• Read the machine operating instructions before first use.
• Use the machine with the specified electrical supply and properly maintained electrical connections.
• Keep the motor, plug, wiring and switches away from wash water.
• Do not use damaged electrical cables, vacuum hoses or milking components.
• Do not pull teat cups away while the system is still under vacuum.
• Switch the machine off before inspecting or servicing the motor or vacuum system.
• Keep children away from operating machinery and electrical components.

Order 40L Double Bucket Milking Machine from IR Farm

IR Farm offers the 40L double bucket milking machine for dairy farmers looking for a higher-capacity setup than a single-bucket machine. Along with genuine dairy-farm machinery, IR Farm can help you compare machine capacity, bucket configuration, farm requirements and spare-parts needs before purchase so you can choose equipment that suits your daily milking workload.

For the latest 40L milking machine price in Pakistan, machine availability, operating guidance or milking machine parts information, contact IR Farm on WhatsApp or call 0300-0698466.

Frequently Asked Questions About 40L Milking Machine

Q: What is a 40L double bucket milking machine?

A: It is an electric dairy milking machine with a double-bucket and double-cluster configuration. This model uses 40-litre stainless-steel milk buckets and provides two milking points for dairy-farm operation.

Q: Can a double bucket milking machine milk two cows at the same time?

A: A double-bucket, double-cluster system is designed with two milking points and can be used for simultaneous milking of two animals when the machine is set up and operated correctly.

Q: What is the stated milking capacity of this 40L milking machine?

A: The reference product specification lists a capacity of approximately 10–15 animals per hour with a stated milking time of 4–7 minutes.

Q: What are the motor and vacuum specifications of the machine?

A: The machine is listed with a 0.55 kW single-phase motor running at 2400 RPM, a 220 V AC power supply and a vacuum-pump capacity of 220 L/min at 50 kPa.

Q: What is the 40L double bucket milking machine price in Pakistan?

A: Double bucket milking machine prices can change according to stock, model and market conditions. Contact IR Farm or check the current product listing for the latest 40L double bucket milking machine price and availability.
